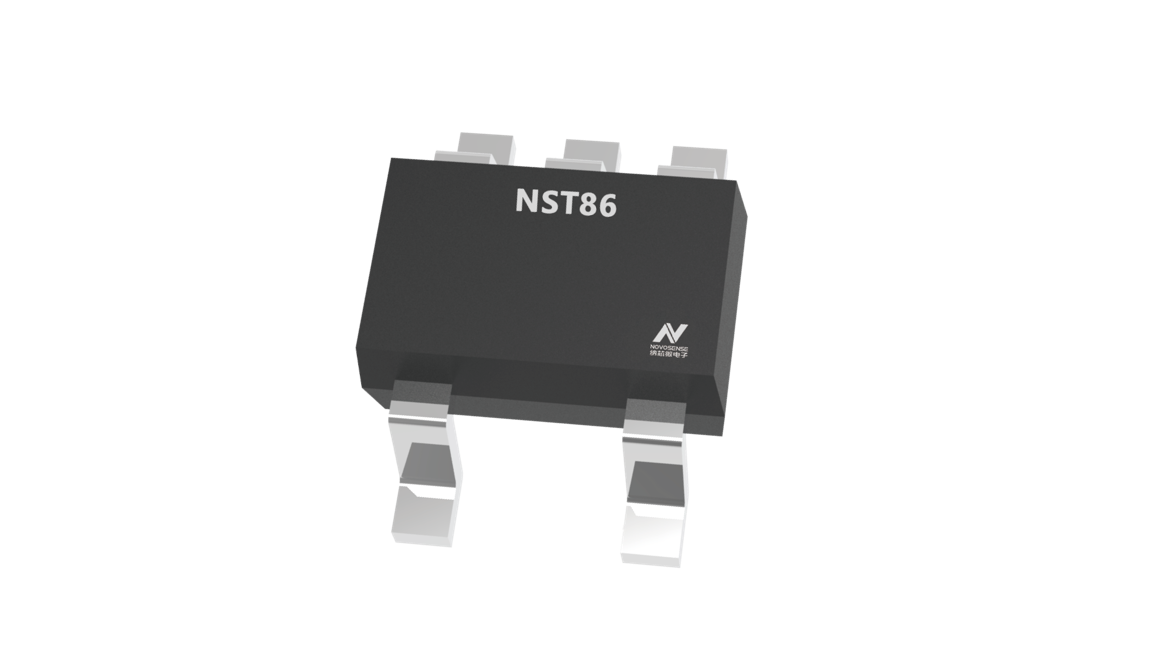

The NST86-Q1 is a precision CMOS integrated circuit linear analog output temperature sensor. It operates with an input voltage range of 2.4V to 5.5V and maintains a maximum temperature error within ±2.5°C across the full temperature range. With a typical quiescent current of 19μA and a typical shutdown current of 0.1μA, it minimizes power consumption in battery-powered devices. The AB-class output driver delivers a robust maximum output of 500?A, capable of driving capacitive loads up to 1000pF and directly interfacing with ADC sample-and-hold inputs. Offering exceptional accuracy and a powerful linear output driver, the NST86-Q1 is a highly cost-effective alternative to passive thermistors.
Product Features
? Operating Temperature Range: -50℃ to 150℃
? High Accuracy: ±1.5℃ (maximum)
? Wide Input Voltage Range: 2.4V to 5.5V
? Output Drive Capability: 500μA
? Output Short-Circuit Protection
? Analog Output Parameter: -10.9mV/℃ negative slope output
? Low Quiescent Current:
- Operating Mode Current: 19μA (typical)
- Shutdown Mode Current: 0.1μA (typical)
Application
?Electric power steering
?Power supply modules
?Gearshift systems
?Battery management systems
?Automotive audio mainframes

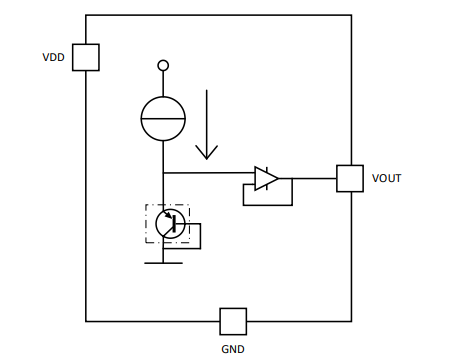

Functional Block Diagram
