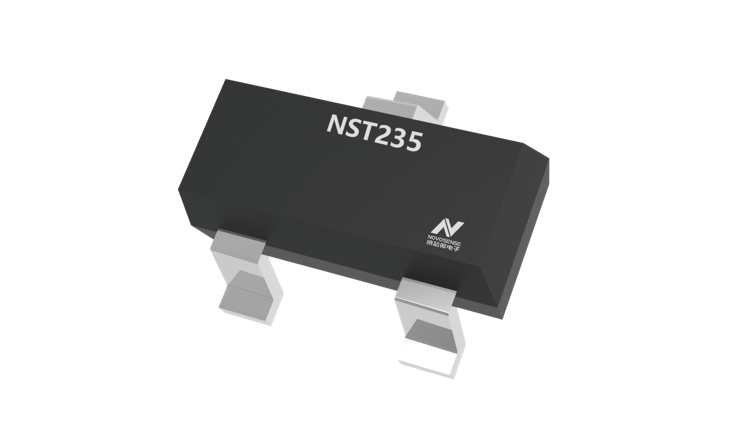

NST235 is a series of precision CMOS integrated circuit linear analog output temperature sensor. Input voltages range is from 2.3V to 5.5V. The maximum temperature error in the whole temperature range is within ±2.5℃. 20μA typical operating mode current and 0.1μA typical turn-off current can greatly reduce the power loss of battery-powered equipment. Class-AB output drivers provide a powerful maximum output of 500?A, which can drive capacitive loads up to 1000pF, and can be directly connected to the ADC sample-hold input end. With excellent accuracy and a powerful linear output driver, the NST235 analog output temperature sensor is an extremely cost-effective alternative to passive thermistors.
Product Features
? Operating temperature range:
- NST235: -40℃~150°C
? High accuracy: ±1.5℃ (typical)
? Wide input voltage range: 2.4V~5.5V
? Output drive capacity：500μA
? Output short circuit protection
? Analog output parameter:
- NST235: 10 mV/℃ positive slope output
? Low static current:
- Operating mode current 20μA (typical)
- Turn-off current 0.1μA (typical)
Application
? Smart phones, computers, fax machines, printers, etc.
? Automotive infotainment system
? Portable medical device
? Industrial automation and control
? Wireless and telecommunications infrastructure
? Grid infrastructure
? Environmental monitoring and HVAC
? Electronic testing equipment

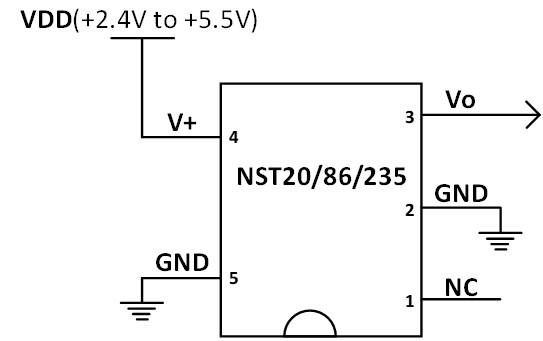

Functional Block Diagram
