The NSOPA910xQ series is a family of high voltage (40 V) general purpose operational amplifiers. These devices offer exceptional DC precision and AC performance, including rail-to-rail input/output, low offset (±200 ?V, typical), low offset drift (±0.3 ?V/°C, typical), low noise (10.5 nV/√Hz and 4.5 ?VPP), and 11.6MHz bandwidth. The NSOPA910xQ of op amps is available in standard packages (SOT-23, MSOP, SOP, and TSSOP), and is specified from -40°C to 125°C.
Product Features
? Wide supply: ±1.35 V to ±20 V, 2.7 V to 40 V
? Low offset voltage: 200μV typ
? Low offset voltage drift: ±0.3 μV/°C typ
? Quiescent current: 2.5 mA per amplifier
? Unity-gain stable
? AEC-Q100 qualified for automotive applications
? Gain-bandwidth product: 11.6 MHz
? High slew rate: 35 V/μs typ
? Robust EMIRR performance: EMI/RFI filters on input and supply pins
? Differential and common-mode input voltage range to supply rail Pulse-friendly/comparator inputs 1 Amplifier operates with differential inputs up to supply rail 2 Amplifier can be used in open-loop or as comparator
? Extended temperature range: –40°C to 125°C
Application
? Multiplexed data-acquisition systems
? Test and measurement equipment
? ADC driver amplifiers
? SAR ADC reference buffers
? Programmable logic controllers
? High-side and low-side current sensing

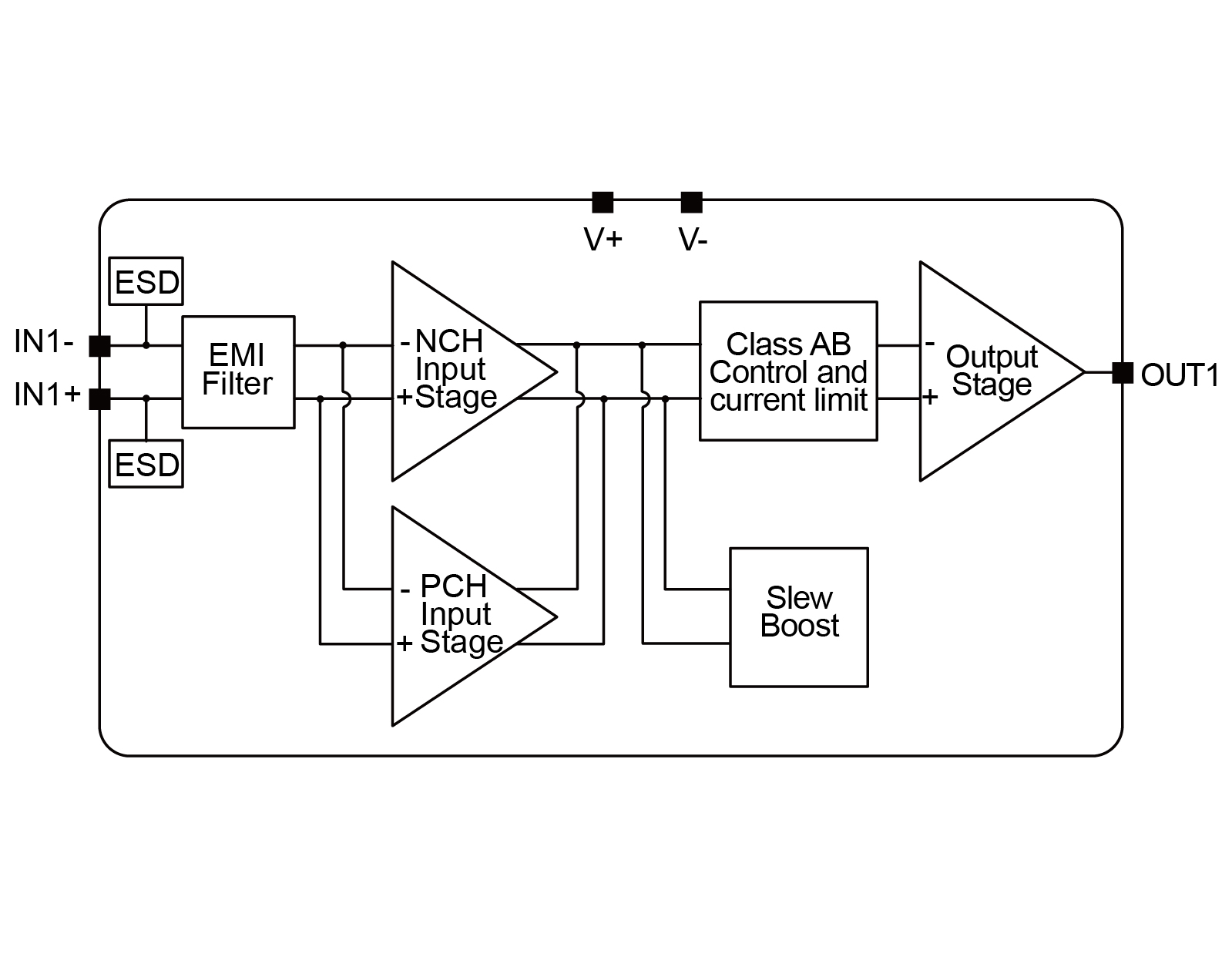

Functional Block Diagram
