NS800RT1135/1137/1155/1157/1025/1035 is equipped with a Cortex M7 core running at 200MHz, paired with our proprietary eMath floating-point math acceleration core, enabling rapid loop control and efficient real-time computational performance. High-speed, high-precision ADCs, 80ps high-precision PWM, dedicated PWM event manager, and fast interaction with high-speed comparators ensure precise control in every high-speed loop.
Product Features
? 200MHz Cortex M7 core with 8KB on-chip cache each core
? mMATH support for various floating-point trigonometric operations, FFT, convolution, and matrix operations
? 128~256KB Flash (with ECC), 80KB SRAM (with ECC), all 80KB is TCM
? 2*32-channel DMA, with DMA support for UART
? 2*12-bit ADCs, up to 4.375Mbps, with a maximum of 21 channels
? Up to 4*2 fast comparators
? Support DAC's comparator output
? Up to 14 PWM channels, 4 with 80ps high-precision PWM
? 3 high-speed capture pins, 2 QEP interfaces
? Up to 2 CLB modules
? 3 UARTs, 1 high-speed UARTs/hardware LIN interfaces, 1 CAN-FD, 1 CAN 2.0, 2 I2Cs, 2 SPIs
? AES128/192/256 support, SHA-1/SHA-2 encryption capabilities
? True random number generator support
? Secure boot support
? IEC60730 safety certification planned
? AEC-Q100 Grade 1 design compliant
? ISO26262 ASIL-B and IEC61508 SIL2 design compliant
? Available in industrial and automotive-grade variants
Application
? Motion Control
? Home Appliance
? Renewable energy storage
? AC inverters and variable frequency drives
? On-board chargers (OBC)
? Digital Power, Energy Storage
? Telecommunications, and server power supplies

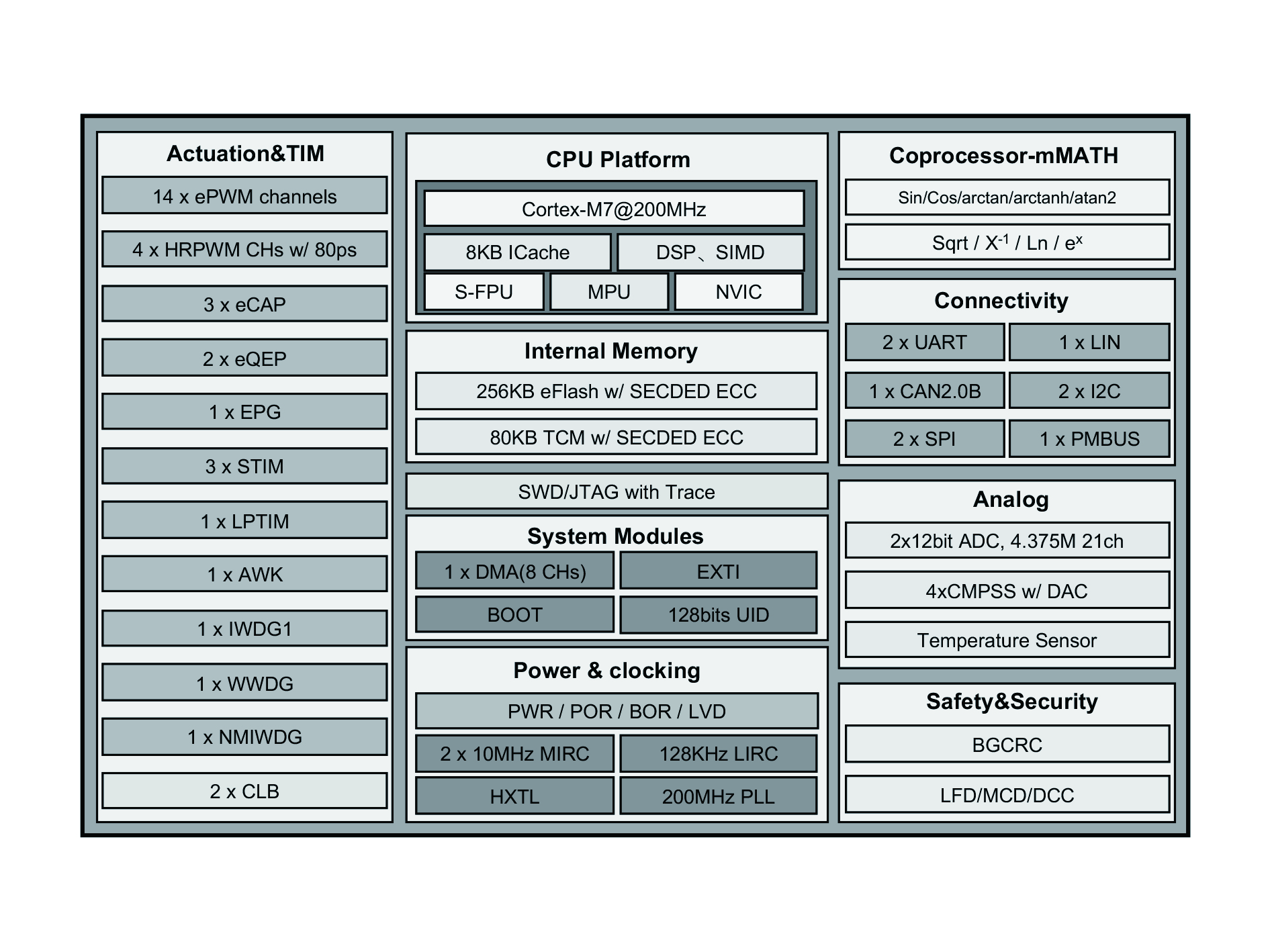

Functional Block Diagram
For more product information, please contact us.
