The NS800RT5037/5039/5049/3025 is equipped with a Cortex M7 core running at 200~260MHz, paired with our proprietary eMath floating-point math acceleration core, enabling rapid loop control and efficient real-time computational performance. High-speed, high-precision ADCs, 100ps high-precision PWM, dedicated PWM event manager, and fast interaction with high-speed comparators ensure precise control in every high-speed loop.
Product Features
? 200~260MHz Cortex M7 core with 32KB on-chip cache
? eMATH support for various floating-point trigonometric operations, FFT, convolution, and matrix operations
? 512KB Flash (with ECC), 388KB SRAM (with ECC), including 256KB TCM
? 2*16-channel DMA, with DMA support for UART
? 3*12-bit ADCs, up to 5Mbps, with a maximum of 32 channels
? 7*2 fast comparators
? 2*12-bit DACs
? 3 high-bandwidth differential amplifiers
? Up to 32 PWM channels, 16 with 100ps high-precision PWM
? 7 high-speed capture pins, 2 QEP interfaces
? 8 Sigma-Delta filters
? 3 UARTs, 2 high-speed UARTs/hardware LIN interfaces, 1 CAN-FD, 1 CAN 2.0, 3 I2Cs, 3 SPIs, 1 QSPI, 1 SDIO
? AES128/192/256 support, SHA-1/SHA-2 encryption capabilities
? True random number generator support
? Secure boot support
? IEC60730 safety certification
? AEC-Q100 Grade 1 design compliant
? ISO26262 ASIL-B and IEC61508 SIL2 design compliant
? Available in industrial and automotive-grade variants
Application
? Solar energy
? Renewable energy storage
? Servo controllers
? AC inverters and variable frequency drives
? On-board chargers (OBC)
? Air conditioning compressor control
? Telecommunications, and server power supplies

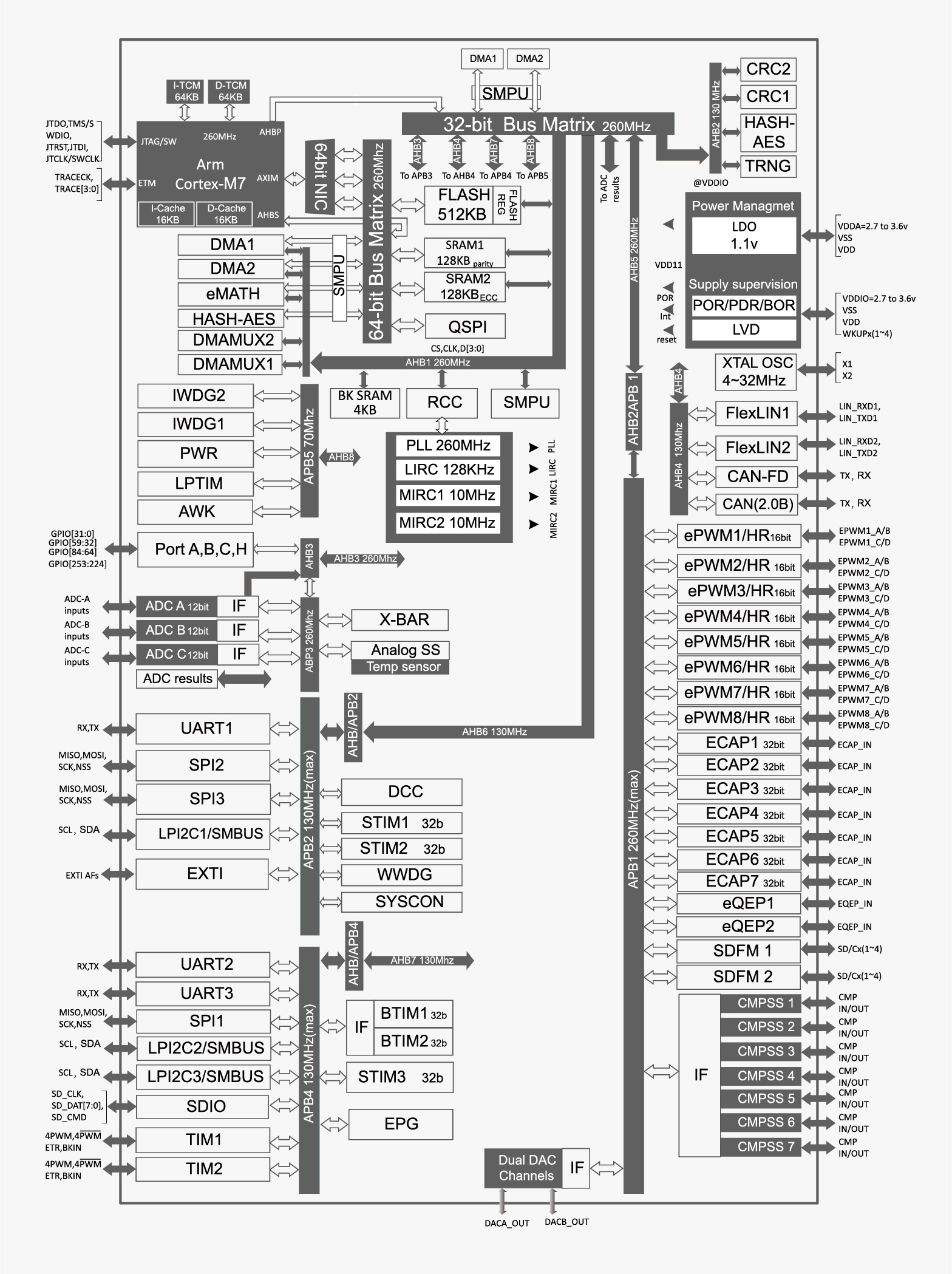

Functional Block Diagram
For more product information, please contact us.
