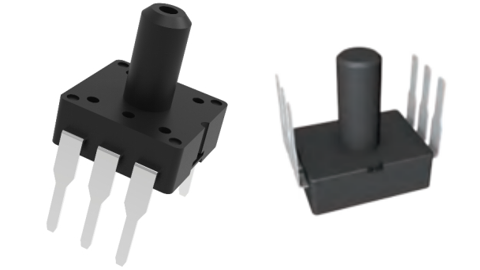

NSPGD1 is a series of calibrated gauge pressure sensors launched by NOVOSENSE for the home appliance and medical market. The series of products adopts high-performance signal conditioning chip to calibrate and compensate the temperature and pressure of MEMS piezoresistive die output. The NSPGD1 series integrated pressure sensor has an optional pressure range from -10kPa-10kPa. It adopts DIP8 package form with air nozzle, which is convenient for soldering and use. It is suitable for gauge pressure detection of non-corrosive gases compatible with pressure sensitive components, especially for non-contact liquid level detection. It is also suitable for industrial, IoT and other fields. This series pressure sensor supports analog output /I2C digital output and unique frequency output, which is more flexible for multi-applications.
Product Features
? Customizable range: -10kPa ~ +10kPa
? Wide temperature range: 0℃~70℃
? The comprehensive accuracy in the full temperature range is better than ± 2.5%
? Analog voltage /I2C digital output/frequency output
? High stability, 100% calibration, temperature compensation
? DIP package with air nozzle, easy to install and seal
? Front air intake for chips avoid blockage
? Internal waterproof moisture-proofing treatment
? Package；DIP-8 (10.4mm x 10.4mm)
Application
? Home appliances: washing machine, dishwasher, coffee machine and water purifier etc.
? Industrial: pressure switch, negative pressure vacuum detection and gas pressure detection
? Medical treatment: ventilator, oxygen generator, anesthesia apparatus, biosafety cabinet
Functional Block Diagram
I2C Output
