NSI1200-Q1 is a high-performance isolated amplifier with output separated from input based on the NOVOSENSE capacitive isolation technology. The device has a linear differential input signal range of ±250mV (±320mV full-scale). The differential input is ideally suited to shunt resistor-based current sensing in high voltage applications where isolation is required. The device has a fixed gain of 8 and provides a differential analog output.
Product Features
? Up to 5000Vrms Insulation voltage
? ±250mV linear Input Voltage Range
? Fixed Gain: 8
? Low Offset Error and Drift: ±0.5mV (Max), -5~5μV/℃ (Max)
? Low Gain Error and Drift: ±0.35% (Max), ±50ppm/℃ (Max)
? Low Nonlinearity and Drift: ±0.05% (Max), ±1ppm/℃ (Typ)
? SNR: 86dB (Typ, BW=10kHz), 72dB (Typ, BW=100kHz)
? Bandwidth: 100kHz (Typ)
? High CMTI: 150kV/μs (Typ)
? System-Level Diagnostic Features:
VDD1 monitoring
Input common-mode overvoltage detection
? Operation Temperature: -40℃ ~125℃
? AEC-Q100 qualified for automotive applications

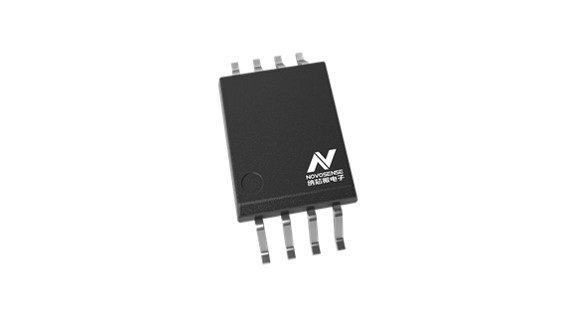

? RoHS-Compliant Packages: SOP8(300mil)
Safety Certificate
? UL recognition: up to 5000Vrms for 1 minute per UL1577
? CQC certification per GB4943.1-2011
? CSA component notice 5A approval IEC60950-1 standard
? DIN VDE V 0884-11:2017-01
Application
? Shunt current monitoring
? AC motor control
? Power and PV inverters
? UPS
? Onboard charger

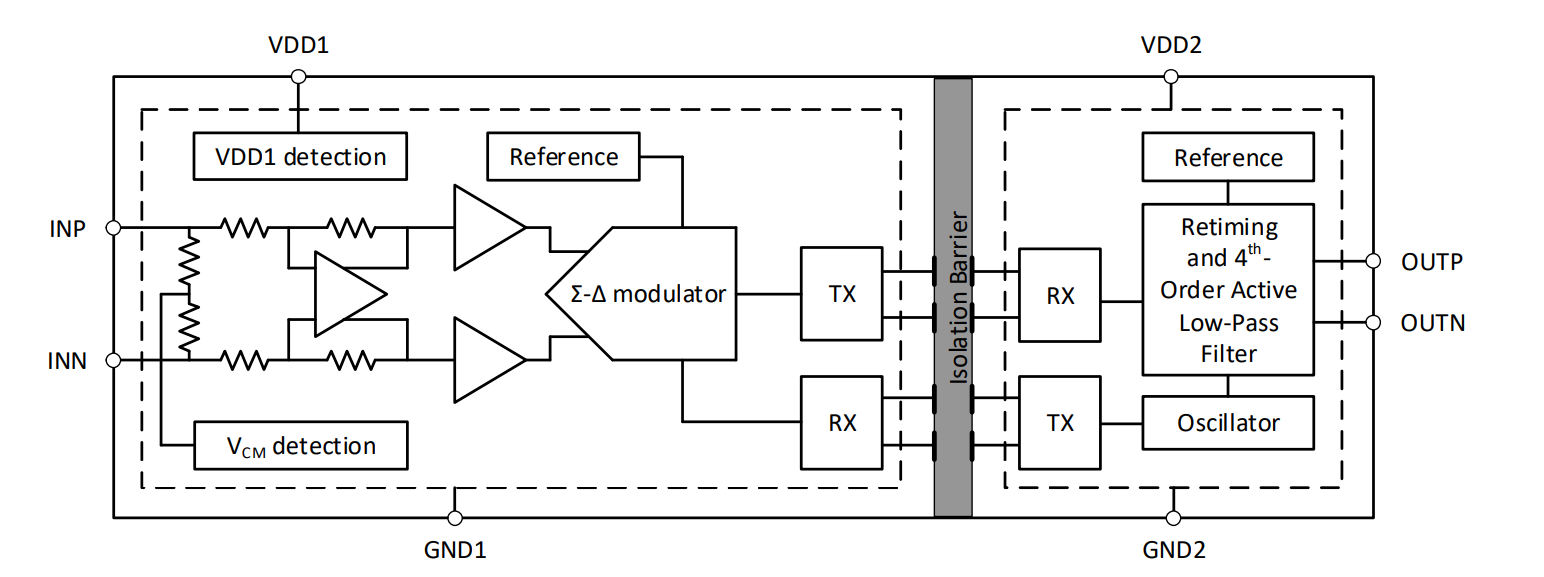

Functional Block Diagram
