It is designed for the applications where the automobile battery supplies power to the system. With a wide input voltage of 3V to 40V, it supports transient voltage up to 42V, which can meet the normal operating requirements of automobile under cold crank and start-stop conditions. Its ultra-low quiescent current of 5uA and low dropout voltage is very suitable for automotive applications with low standby power consumption required. It supplies power to MCU and CAN/LIN transceivers in standby systems to save power and extend battery life.
Product Features
? AEC-Q100 automotive qualified
? Quiescent current Iq as low as 5uA
? Operating voltage range: 3 -40V
? Output current 500mA
Application
? In-vehicle entertainment and autopilot
? Body electronics and lighting
? Inverter and motor control
? OBC/DCDC and BMS

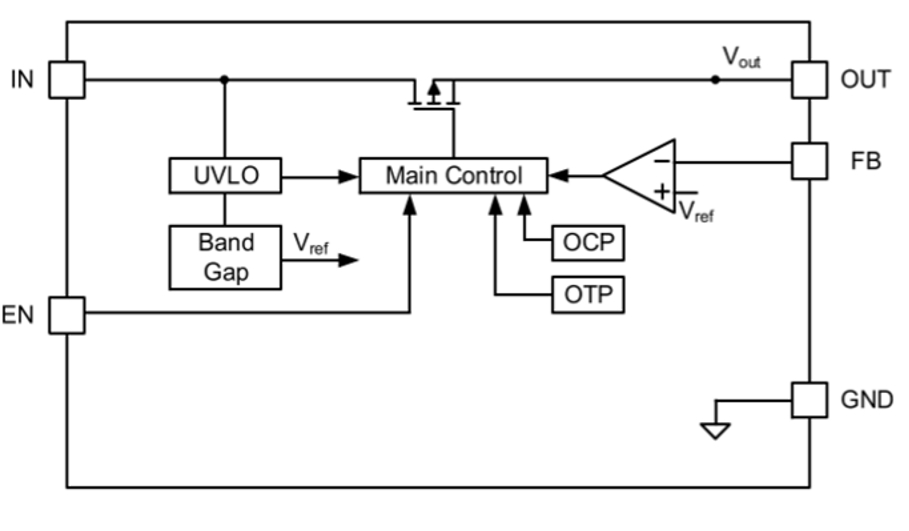

Functional Block Diagram
