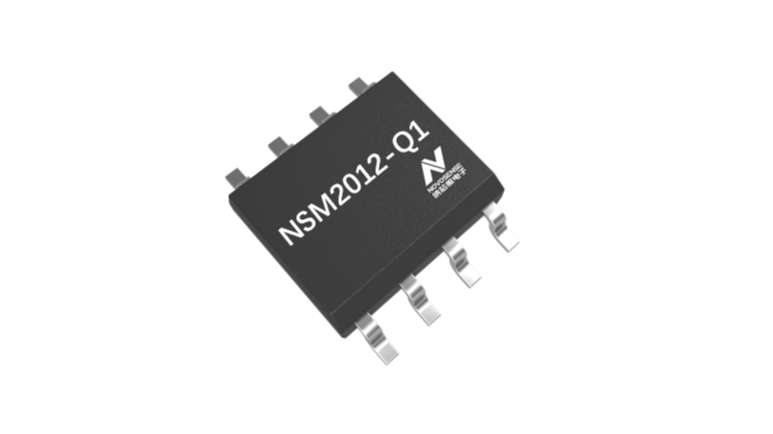

NSM2012-Q1 series is an automotive chip-level current sensor launched by NOVOSENSE which is mainly used for isolation measurement of current under 65A.
Product Features
? 2.5~65A Wide current range available
? AC/DC input
? 3.3V/5V single power supply
? 1.2mOhm low Input conduction impedance
? ±1.5% current measurement accuracy
? 1.5us response time
? 400kHz signal bandwidth
? Withstand up to 4kA surge current (8μs /20μs surge current waveform)
? Ratiometric output
? Fixed output + Pseudo Differential Output
? SOP8 package: 600VDC working isolation voltage / 3000 Vrms @ 1 min Withstand isolation voltage
? 4mm Creepage distance
? 4mm Clearance distance
? Common-Mode magnetic field rejection
? -40~125°C operating temperature range
? AEC-Q100 Grade 1 qualified
Safety Certificate
? UL62368/EN62368 safety certification
Application
? Automotive: OBC, DC/DC, PTC heater, charging gun, PDU, etc.
Functional Block Diagram
For more product information, please contact us.
