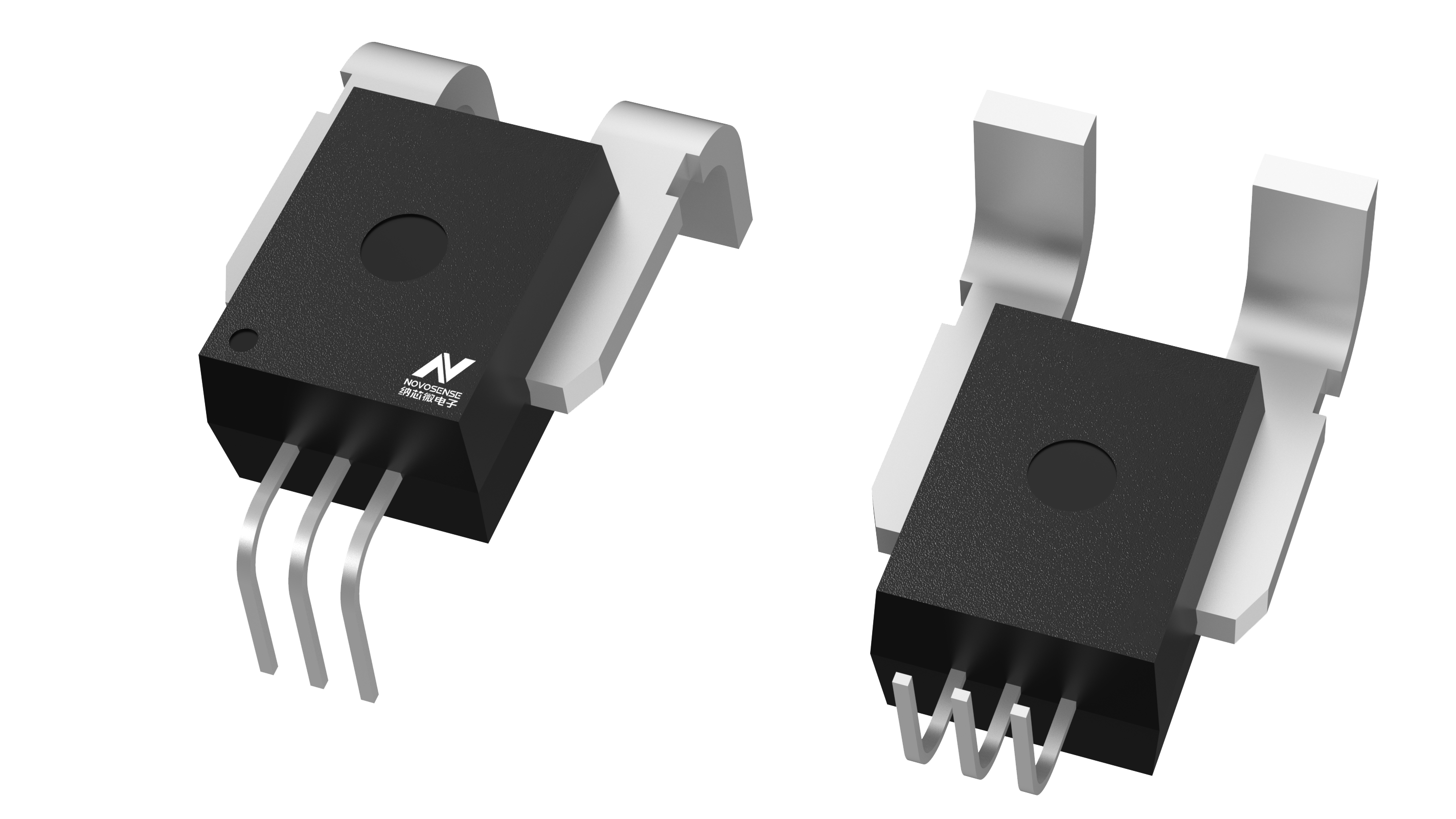

NSM2311 is a high performance module-alternative current sensor which is mainly used for isolation measurement of current under 400A, to achieve a compact, low-cost, and high-precision sensing solution.
Product Features
?50~400A Wide current range available
?AC/DC input
?3.3V15V single power supply
?100μOhm low Input conduction impedance
?+2% sensitivity error over temperature
?+5mV offset error over temperature
?2.3s response time
?150KHz signal bandwidth
?Ratiometric or fixed output
?+8KV ESD(HBM)
?DIP-5L package:1358VDC working isolation voltage /5000 Vrms @ 1 min
?Withstand isolation voltageWithstand up to over 20kA surge current (8us /20ussurge current waveform)
?6.9mm Creepage distance
?6.9mm Clearance distance
?-40~150°C operating temperature range
Safety Certificate
?UL62368/EN62368 safety certification
Application
?Industrial：industrial frequency converter, PV inverter, power supply(UPS, SMPS, etc.), PDU
For more product information, please contact us.
