NSM2019-Q0 series is an automotive integrated current sensor launched by NOVOSENSE which is mainly used for isolation measurement of current under 200A.
Product Features
? 20~200A Wide current range available
? AC/DC input
? 3.3V/5V single power supply
? 0.27mOhm low Input conduction impedance
? ±2% current measurement accuracy
? 1.5us response time
? 320kHz signal bandwidth
? Withstand up to 20kA surge current (8μs /20μs surge current waveform)
? Fixed Output
? Reference Output
? Over Current detection by Fault Pin
? SOW10 package: 1618VDC working isolation voltage / 5000 Vrms @ 1 min Withstand isolation voltage
? 8.2mm Creepage distance
? 8.2mm Clearance distance
? Common-Mode magnetic field rejection
? -40~150°C operating temperature range
? AEC-Q100 Grade 0 qualified
Safety Certificate
? UL62368/EN62368 safety certification
Application
? Automotive: OBC, DC/DC, PTC heater, charging gun, PDU, etc.

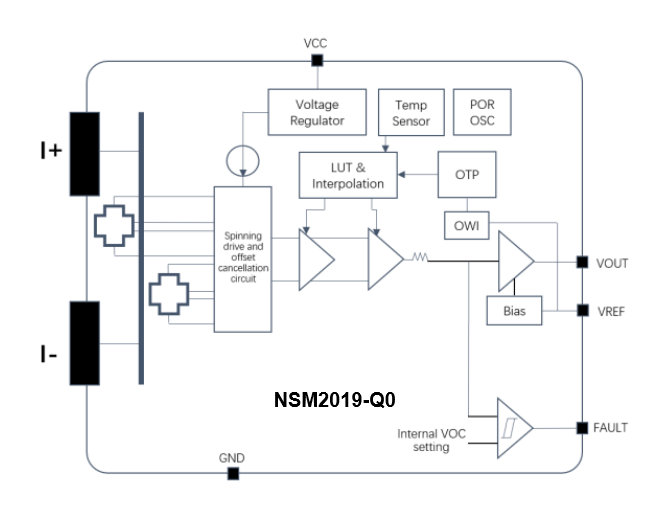

Functional Block Diagram
