NCA1145B is a high-speed CAN transceiver providing an interface between a Controller Area Network (CAN) protocol controller and the physical two-wire CAN bus. The transceiver consumes very low power in Standby and Sleep modes. Meanwhile, NCA1145B supports CAN Partial Networking compliant to ISO11898-2:2024 by selective wake-up function.
Product Features
? AEC-Q100 Qualified for automotive applications, Grade 1
? Fully compatible with the ISO11898-2:2024 standard
? I/O voltage range supports 1.8V,3.3V and 5V MCU
? Power supply voltage: VCC: 4.5V to 5.5V; VIO: 1.7V to 5.5V; VBAT:4.5V to 40V
? Very low-current Standby and Sleep modes
? Autonomous bus biasing
? Remote wake-up via standard CAN wake-up pattern or via ISO 11898-2:2024 compliant selective wake-up frame detection and local wake-up via the WAKE pin
? Bus fault protection:-58V to 58V
? Overtemperature warning and shut-down
? 16- or 24- or 32-bit SPI for configuration, control and diagnosis
? Data rate: up to 5Mbps
? Advanced system and transceiver interrupt handling
? Operation temperature: -40℃~125℃

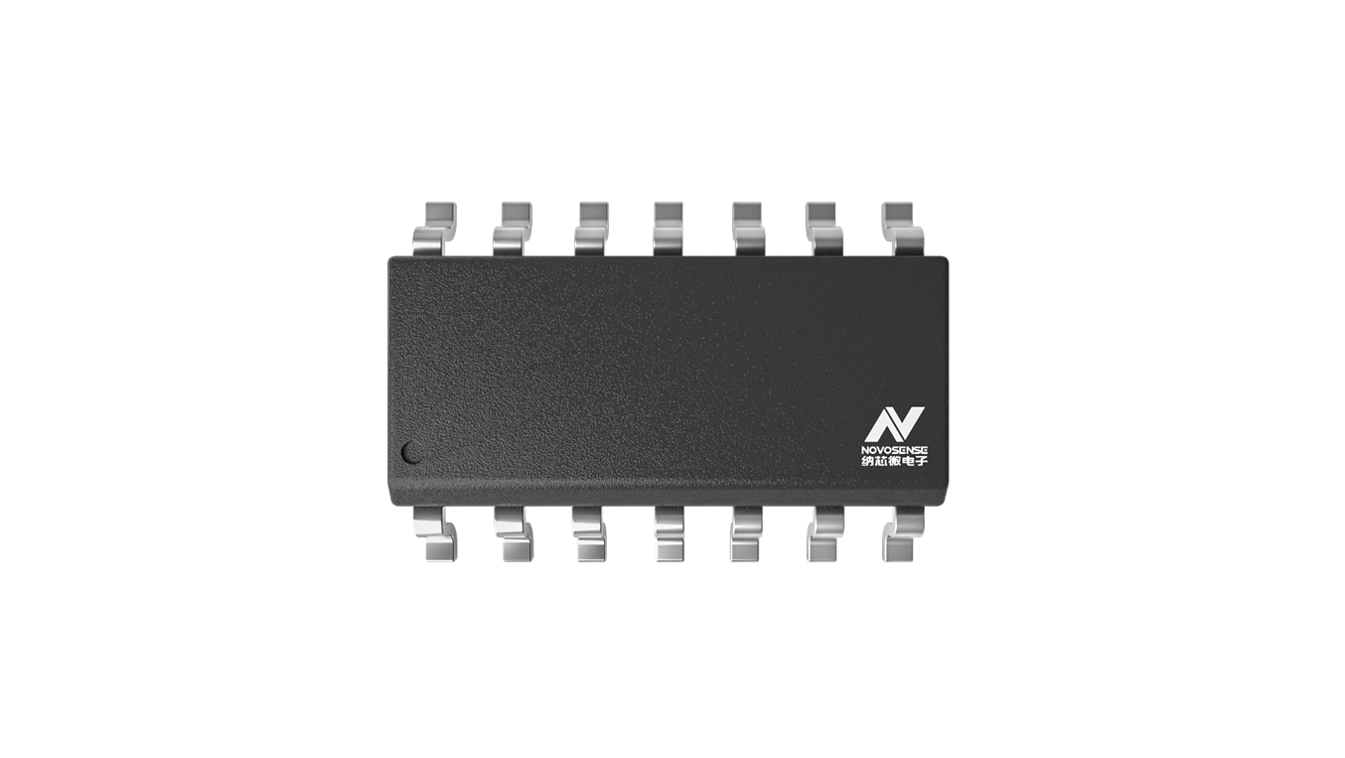

? RoHS & REACH compliant packages: SOP14, DFN14
Application
? Automotive infotainment and cluster
? Hybrid, electric and powertrain systems
? Body electronics and lighting

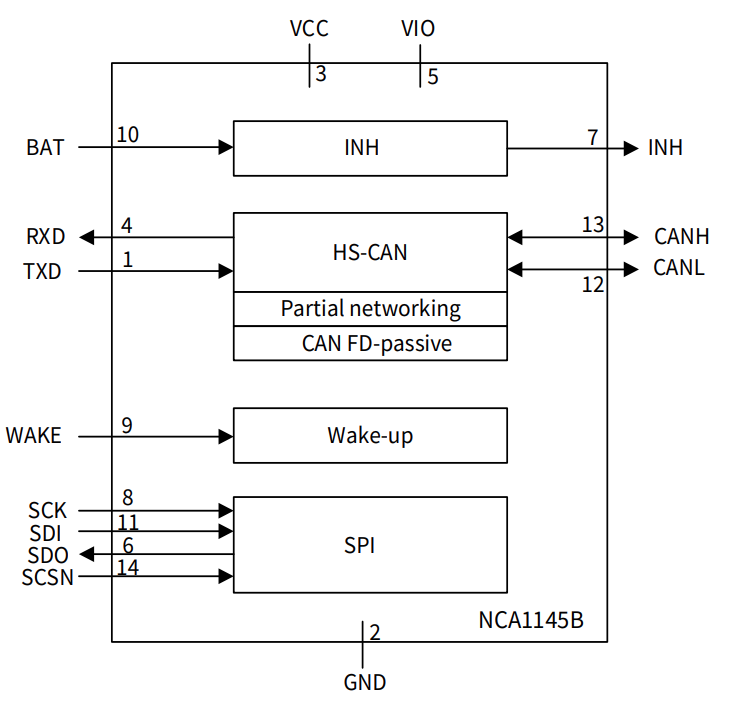

Functional Block Diagram
