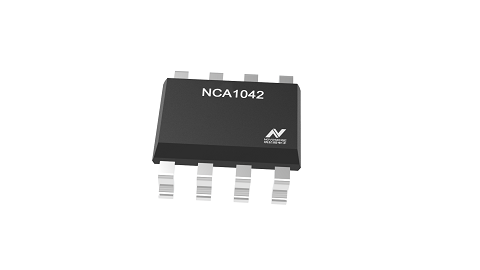

The NCA1042 is a high-speed CAN transceiver that provides an interface between a Controller Area Network (CAN) protocol controller and the physical two-wire CAN bus. The NCA1042 implements the CAN physical layer as defined in ISO 11898-2:2016 and SAE J2284-1 to SAE J2284-5. This implementation enables reliable communication in the CAN FD fast phase at data rates up to 5 Mbit/s. The NCA1042 provides thermal protection and transmit data dominant time out function.
Product Features
? Fully compatible with the ISO11898-2 standard
? I/O voltage range supports 3.3V and 5V MCU
? Power supply voltage
VIO: 3V to 5.5V
VCC: 4.5V to 5.5V
? Bus fault protection of -70V to +70V
? Bus common-mode voltage of -30V to +30V
? Transmit data (TXD) dominant time out function
? Bus dominant time out function in standby mode
? Very low-current Standby mode with wake-up capability
? Over current and over temperature protection
? Data rate: up to 5Mbps
? Low loop delay: <250ns
? Operation temperature: -40℃ to +125℃
? RoHS compliant
Application
? CAN bus standards such as CANopen, DeviceNet, NMEA2000, ARNIC825, ISO11783 and CANaerospace
? Highly loaded CAN networks down to 10 kbps networks using TXD DTO
? Industrial automation, control, sensors, and drive systems
? Building, security, and climate control automation
Functional Block Diagram
